DS820A

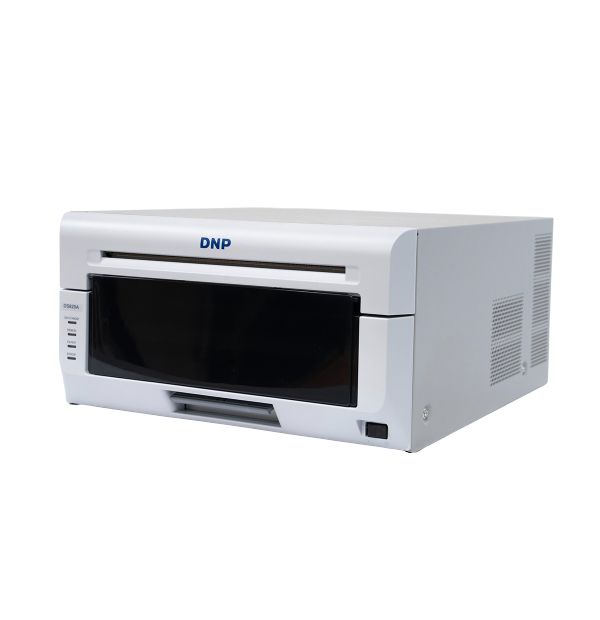

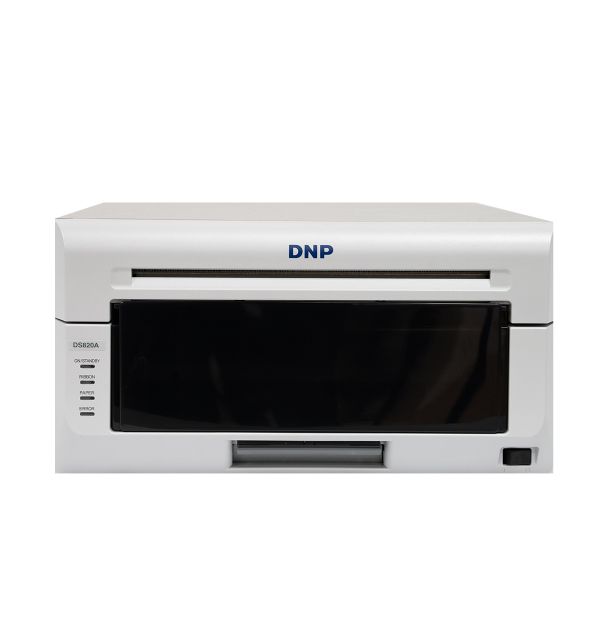

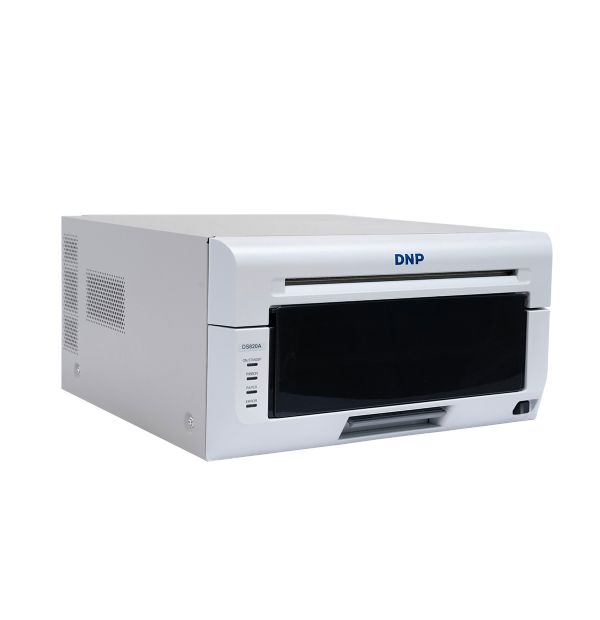

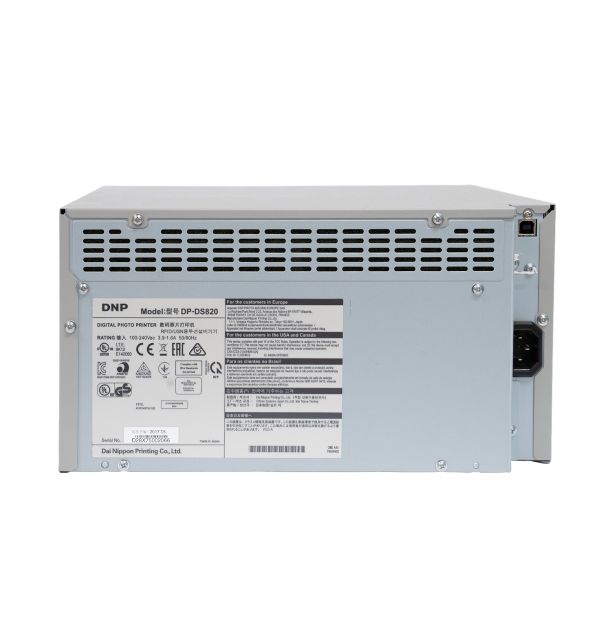

DNP DS820A 8-Inch Dye-Sublimation Photo Printer
The DS820A is DNP’s 8-inch dye-sublimation photo printer, engineered with advanced dye-sub technology to deliver exceptional image quality, expanded print flexibility, and high-volume performance for studio and event photographers.
Advanced Performance & Print Technology
The DS820A incorporates next-generation components designed to maximize productivity and print consistency, including:
- Latest-generation thermal print heads
- Higher optical density for richer blacks and more vibrant colors
- Improved heat dissipation to support higher throughput during extended print runs
- Expanded print size options, including panoramic formats
- Low-power standby mode to reduce energy consumption when idle
Premium Image Quality & Finishes
Paired with DNP’s Pure Premium Digital media, the DS820A produces professional-grade prints that meet the exacting demands of today’s photographers. In addition to standard glossy and matte finishes, the DS820A supports luster and fine matte finishes, which add subtle texture, depth, and visual appeal—perfect for portraits, events, and display-quality prints.
Stunning Panoramic Capabilities
The DS820A delivers breathtaking panoramic prints in 8x18”, 8x22”, 8x26”, and 8x32” sizes using DNP’s standard media—no specialty paper required. Panoramic printing is enabled when the printer is running DS820A firmware v1.52 or later and used with the WCM-Plus or DNP’s Hot Folder Print (HFP) Utility v2.2 or later.
*When printing pano prints the printer will print the image in sections and the paper will exit and rewind into the printer several times before being cut. Standard and enlargement print trays cannot be used.
Versatile Print Sizes & Enhanced Driver Features
The DS820A supports a wide range of print sizes—from 4×8” prints up to dramatic 8×32” panoramic images, making it ideal for everything from sweeping landscapes to memorable family reunions.
Driver enhancements further improve usability and workflow efficiency, including:
- Real-time printer status monitoring
- Clear printable size indication
- Automatic ICC profile switching based on media type
Reliable, Energy-Efficient Operation
With improved heat management for sustained performance and an energy-saving standby mode, the DS820A is built for dependable, cost-effective operation in demanding environments. Each printer is backed by a 3-Year Advanced Exchange (AE) Extended Warranty, providing peace of mind and dependable end-user support.
Specifications
| Printer: | DS620A | DS820A | DS-RX1HS | QW410 |
|---|---|---|---|---|
| Printer class | 6-inch | 8-inch | 6-inch | 4.5-inch |
| Printing technology | Dye-sublimation thermal transfer | Dye-sublimation thermal transfer | Dye-sublimation thermal transfer | Dye-sublimation thermal transfer |
| Maximum resolution | 300 × 600 dpi | 300 × 600 dpi | 300 × 600 dpi | 300 × 300 dpi |
| Representative speed | 4 × 6 in approximately 8.3 sec. | 8 × 10 in approximately 29.3 sec. | 4 × 6 in approximately 12.4 sec. | 4 × 6 in approximately 19 sec. |
| Hourly 4 × 6 output | Up to approximately 430 | Not its primary format | Up to approximately 290 | Approximately 189 |
| Maximum standard print | 6 × 8 in | 8 × 12 in | 6 × 8 in | 4.5 × 8 in |
| Maximum panorama | 6 × 20 in | 8 × 32 in | Not supported | 4.5 × 8 wide-ratio print |
| 4 × 6 capacity | 400 prints per roll | — | 700 prints per media set | 150 prints per roll |
| Largest-format capacity | 200 6 × 8 prints | 100 8 × 12 or 130 8 × 10 | 350 6 × 8 prints | 110 4.5 × 8 prints |
| Finishes | Glossy, matte, luster and fine matte* | Glossy, matte, luster and fine matte | Glossy and matte | Glossy and matte |
| Dimensions W × D × H |
10.8 × 14.4 × 6.7 in | 12.7 × 14.4 × 6.7 in | Approximately 12.6 × 13.8 × 11.1 in | Approximately 8 × 9.5 × 7.75 in |
| Weight | Approximately 26.4 lb | Approximately 30 lb | Approximately 30.8 lb | Under 13 lb |
| Connection | USB 2.0 | USB 2.0 | USB 2.0 | USB 2.0 |
| Power supply | AC 100–240V, 50/60Hz | AC 100–240V, 50/60Hz | AC 100–240V, 50/60Hz | AC 100–240V, 50/60Hz |
| Best suited for | Fast, versatile event and photo-booth printing | Portraits, studios and large-format printing | Economical, high-capacity event printing | Mobile and space-limited installations |
*Finish availability depends on media, driver and printer configuration.
