IDW520
IDW520 ID Photo Printing System
ID photo printing is one of the most profitable services a photo business can offer—and the IDW520 is purpose built to help you deliver compliant results with confidence. Designed specifically for passport and government issued ID photos, the IDW520 ensures images meet federal requirements, helping eliminate rejections and keeping customers satisfied.
Your Complete, All in One ID Photo Solution

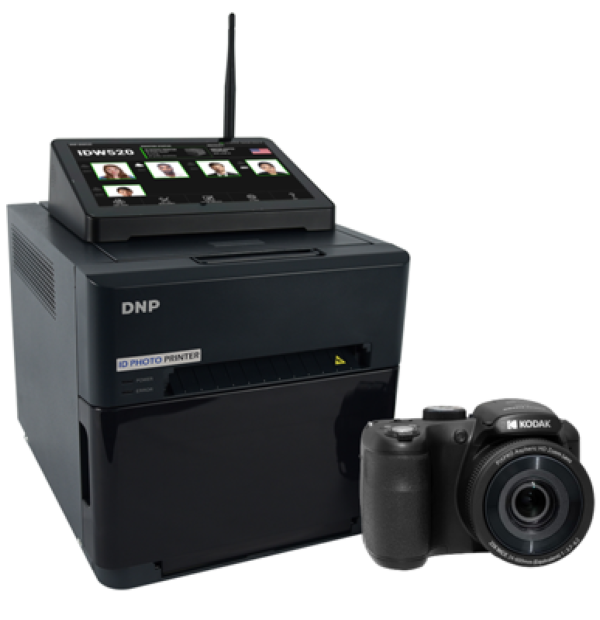

The IDW520 system includes everything you need to produce compliant ID photos quickly and easily:
- DNP QW410 ID Photo Printer
- Compact ID Processor Console with a 7” touchscreen
- DNP IDW Image Processing Software for automatic compliance
- PIXPRO AZ255 ID Camera
- WiFi EZ Share SD Card
Fast, Accurate, and Easy to Use
Produce compliant ID photos right the first time—every time in just a few simple steps. The system automatically handles image adjustments and compliance checks, eliminating the need for manual corrections. This saves time, reduces operator error, and allows staff of any experience level to deliver professional results with ease.
Simple workflow. Consistent compliance. Profitable results.
- Printer, Camera, Processor Console, and WiFi EZ Share SD Card all included!
- Includes 3-year Advance Exchange service on the printer at no cost!
- Small footprint takes up less countertop space.
- Wirelessly transfer images to the processor console automatically.
- The IDW520 is specifically designed to produce passport and ID photos that comply with federal requirements eliminating rejections and keeping your customers happy!
- Designed for both domestic and foreign passport requirements. Includes numerous other iD formats for State iDs or create your own iD layout.
Printer:
| Dimensions | (WHD) 8” x 7.75” x 9.5” |
| Unit Weight (console and printer) | 13 lbs. |
| Power, AC Adapter | 100VAC, 240V 50/60Hz |
| Printer | ID Photo Printer |
| ID Media Size | 4.5x6, US Passport 2x2” two images per page |
Console:
| Screen Size / Screen Resolution | 7” Diagonal Visible / 1280x800 |
| Touchscreen | 5-point capacitive multi-touch |
| Radio Frequency / Antenna | Wireless LAN 2.4 Ghz: 802.11 b/g/n / 4.5” 2 dBi gain |
| Wireless LAN Operating Mode / Security | Access Point / WPA |
| Dimensions | (WHD) 7” x 2” x 5.3” (7“x 8”x 5.3“ with antenna) 18 x 5 x 13.5cm (18 x 20 x 13.5cm with antenna) |

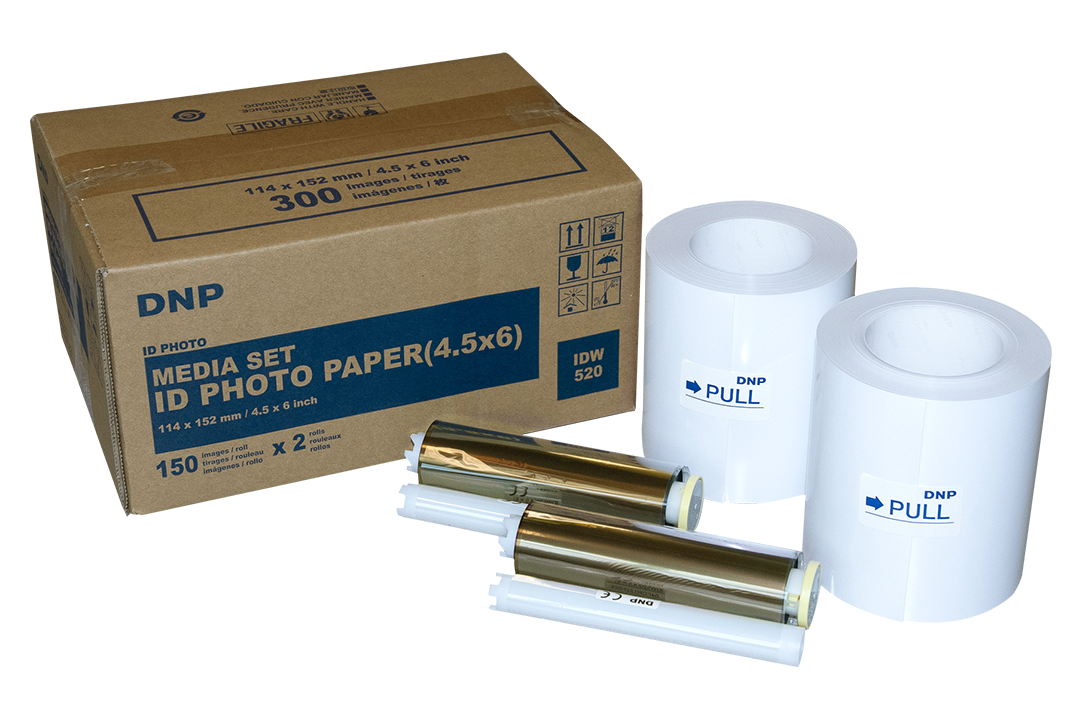

ID System Print Media
| Description | Photo Print media, Color, Self-laminating |
| Back Watermark | DNP ID Photo Paper |
| Media | Two Paper Rolls / Two Ink Ribbons 150 4.5x6” sheets per roll |
- Size: 4.5" x 6"
- Number of rolls: 2
- Images per roll: 150
At DNP, we ensure our process is the smoothest, our cost of ownership is the lowest, our support is the swiftest, but most of all that our print quality is supreme. We achieve this by being the innovation and quality leader in dye-sublimation photo printing.
No matter how you view it, ultimately, media is the end-product!
DNP’s dye-sublimation media solutions can create a total of 16.7 million true colors, reproduce stunning natural images, and are specially designed for use with DNP’s professional photo printers.

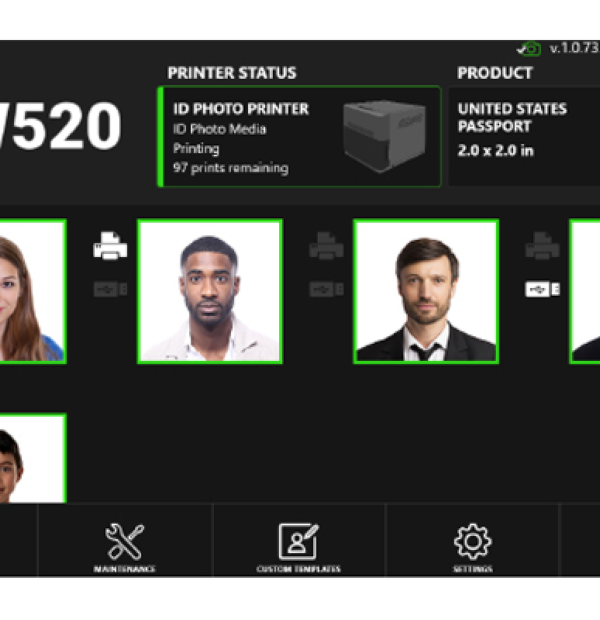

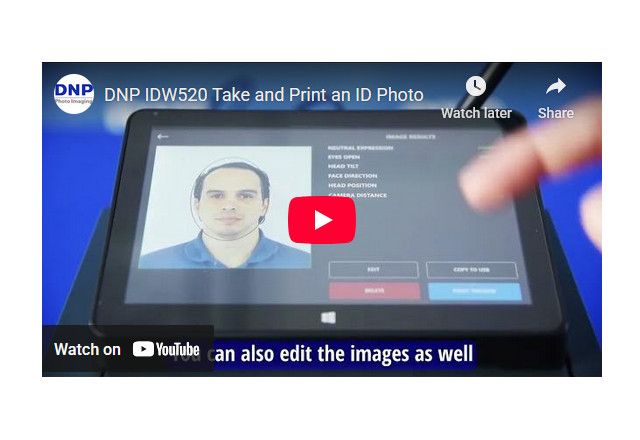

Easy-to-use Software
- New in v1.5 - Easier online US Passport Renewals with digital file improvement for upload.
- Enhanced Viewing Mode – Increase the size of the images on the IDW console screen for easier selection.
- Black & White Mode – A button to easily switch between B&W and Color for any iD template on the system.
- Shoot the photo and the system automatically transfers the images to the processor console. *
- The IDW520 software creates a gallery of the captured and transferred images that allows for easy image selection.
- Review and select the best image to process.
- The system runs the biometric checks, automatically adjusts the head size and position to fit the sizing guide, and then auto-prints the images.
- Images can be manually edited allowing full control and handling difficult subjects e.g. baby iD photos.
- Adjust color, brightness, contrast, and more to ensure the highest quality photo.
- The IDW processor has configurable processing controls and sensitivity settings to tune it for optimum results in your shop.
- Choose from a vast selection of foreign and domestic Passport and Visa output sizes.
- Optional output of the ID files to a USB storage device for customer use.
* The Previous image selection method, DPOF image selection in the camera is still available by adjusting the system setting. Contact Tech Support for Information.
